Projects
The end result of most VB programming efforts is an executable program (one that has a .EXE extension). This file is compiled from the actual text files which make up a VB project. VB doesn't put the entire project into a single file. Instead, it allows the programmer to break up a project into several smaller files. Each of these files can be used in more than one VB project. The group of files used to compile the application is called a VB project and is the topic for discussion in this section of the tutorial.


Project Definition

A typical VB application might consist of more than one forms, each of which may have multiple controls. In VB, the information about each form (it's own properties as well as those of the controls that are on the form) is saved into it's own file. In fact, there are several types of files which VB creates (we'll cover them all later in the tutorial).

VB also saves a "project" file which contains the list of files which VB loads when the "project" is loaded. The project file includes other information, such as the filenames of controls which are not intrinsic to VB (they exist as separate files with .OCX extensions).

The project file is a simple ASCII text file and may be edited with any text editor, including NOTEPAD (which comes with Windows). Once you learn the format of the project file you may have reason to edit it directly but in general, most programmers do their editing within the VB IDE.

The project file is saved with an extension of .VBP (Visual Basic Project). Other files saved by VB include the following extensions:
- .FRX : graphics associated with the form
- .BAS : code not associated with control events

The good thing about splitting a project into many files is that you can use a file (form or otherwise) in one or more projects. If you make a change to the one file, all using projects see the change.

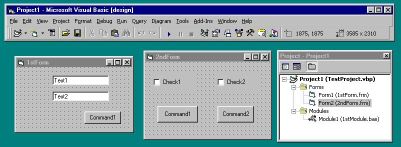

In the following VB IDE example, you see a project with two forms, each with multiple controls. The filename of each form is displayed in the project window, as is the name of a single .BAS file. Together, all three files make up the VB project.

(click to enlarge)

Here is the content for each of the files. You will note that the files are in ASCII text. By inspection, you can guess what a lot of the line items are for.

  • Project File
    Type=Exe
    Form=2ndForm.frm
    Reference=*\G{00020430-0000-0000-C000-000000000046}#2.0#0#..\WINDOWS\SYSTEM\STDOLE2.TLB#OLE Automation
    Form=testform.frm
    Startup="Form1"
    Command32=""
    Name="Project1"
    HelpContextID="0"
    CompatibleMode="0"
    MajorVer=1
    MinorVer=0
    RevisionVer=0
    AutoIncrementVer=0
    ServerSupportFiles=0
    VersionCompanyName="Personal"
    CompilationType=0
    OptimizationType=0
    FavorPentiumPro(tm)=0
    CodeViewDebugInfo=0
    NoAliasing=0
    BoundsCheck=0
    OverflowCheck=0
    FlPointCheck=0
    FDIVCheck=0
    UnroundedFP=0
    StartMode=0
    Unattended=0
    Retained=0
    ThreadPerObject=0
    MaxNumberOfThreads=1

  • Form 1
    VERSION 5.00
    Begin VB.Form Form1
    Caption = "2ndForm"
    ClientHeight = 2280
    ClientLeft = 5805
    ClientTop = 2055
    ClientWidth = 3735
    LinkTopic = "Form1"
    ScaleHeight = 2280
    ScaleWidth = 3735
    Begin VB.CheckBox Check2
    Caption = "Check2"
    Height = 495
    Left = 2160
    TabIndex = 3
    Top = 360
    Width = 1215
    End
    Begin VB.CheckBox Check1
    Caption = "Check1"
    Height = 495
    Left = 240
    TabIndex = 2
    Top = 360
    Width = 1215
    End
    Begin VB.CommandButton Command2
    Caption = "Command2"
    Height = 495
    Left = 2160
    TabIndex = 1
    Top = 1320
    Width = 1095
    End
    Begin VB.CommandButton Command1
    Caption = "Command1"
    Height = 495
    Left = 360
    TabIndex = 0
    Top = 1320
    Width = 1215
    End
    End
    Attribute VB_Name = "Form1"
    Attribute VB_GlobalNameSpace = False
    Attribute VB_Creatable = False
    Attribute VB_PredeclaredId = True
    Attribute VB_Exposed = False
    Option Explicit

  • Form 2
    VERSION 5.00
    Begin VB.Form Form2
    Caption = "Form2"
    ClientHeight = 1905
    ClientLeft = 6600
    ClientTop = 2025
    ClientWidth = 3465
    LinkTopic = "Form2"
    ScaleHeight = 1905
    ScaleWidth = 3465
    Begin VB.CommandButton Command1
    Caption = "Command1"
    Height = 375
    Left = 2040
    TabIndex = 2
    Top = 1320
    Width = 1095
    End
    Begin VB.TextBox Text2
    Height = 285
    Left = 1080
    TabIndex = 1
    Text = "Text2"
    Top = 720
    Width = 1695
    End
    Begin VB.TextBox Text1
    Height = 285
    Left = 1080
    TabIndex = 0
    Text = "Text1"
    Top = 240
    Width = 1695
    End
    End
    Attribute VB_Name = "Form2"
    Attribute VB_GlobalNameSpace = False
    Attribute VB_Creatable = False
    Attribute VB_PredeclaredId = True
    Attribute VB_Exposed = False
    Option Explicit

As you go through more of the tutorial, the content of the files will make more sense, but even now you can see that the information is not that difficult to decipher.
